Home Connect Pairing - Induction Cooktops

Liberty
CIT367XG
CIT367XGS
CIT367XM
CIT367XMS
Liberty Induction Models
Thermador home connect induction liberty pairing step 1

STEP 1

Download the Home Connect app

Thermador home connect induction liberty pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started
Thermador home connect induction liberty cooktops pairing step 4 gif

STEP 3

When prompted, press the 'Continue' button to begin, and go to your appliance

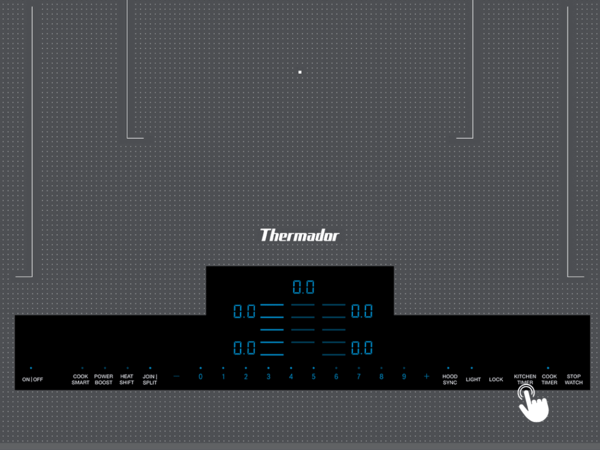

Thermador home connect induction liberty cooktops pairing step 4 gif

STEP 4

Turn on the cooktop, then press and hold the ‘Kitchen Timer’ button for 4 seconds until the product information is displayed

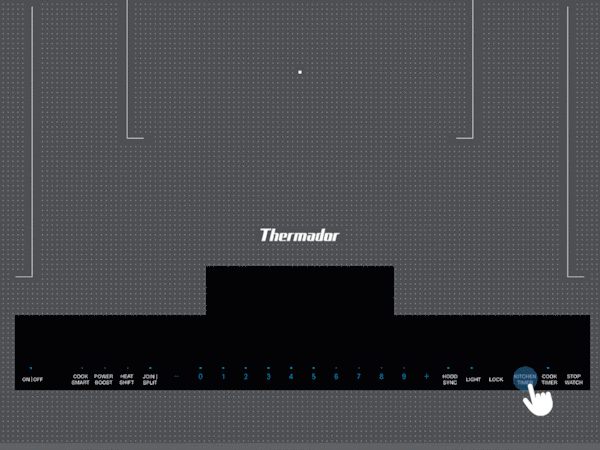

Thermador home connect induction liberty cooktops pairing step 4 gif

STEP 5

Press the ‘Kitchen Timer’ button repeatedly until ‘HC’ and ‘1’ are displayed alternately, and ‘0’ is lit up in the cooking zone display

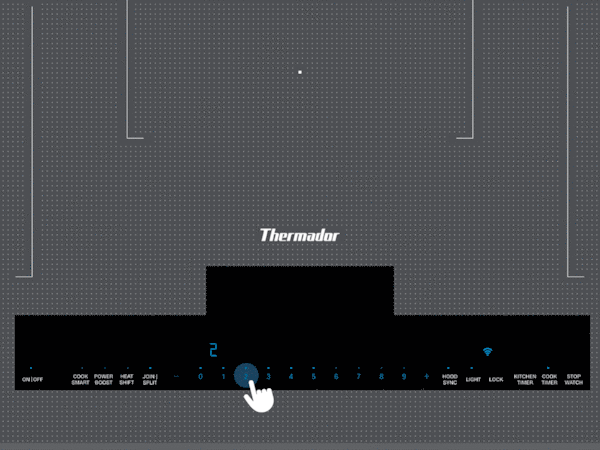

Thermador home connect induction liberty cooktops pairing step 6

STEP 6

Press ‘2’ on the control panel; then both ‘2’ and will flash on the display

Thermador home connect induction liberty cooktops pairing step 7

STEP 7

When a pop-up appears in the app asking you to joing the "HomeConnect" Wi-Fi, press 'Join'

Thermador home connect induction liberty cooktops pairing step 8

STEP 8

Type in your home Wi-Fi password to complete the connection in the app

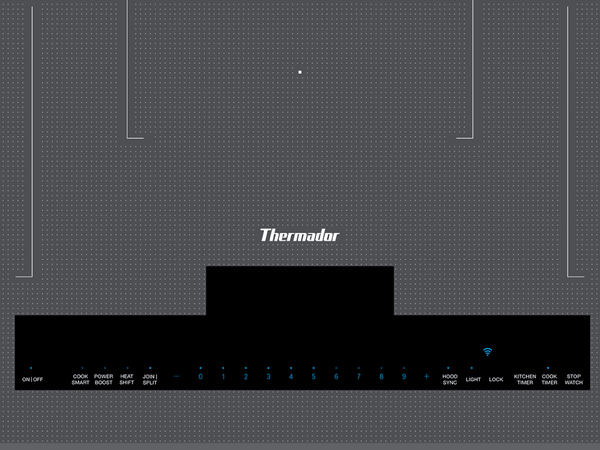

Thermador home connect induction liberty cooktops pairing step 9

STEP 9

When the button stops flashing and lights up solid on the display, your connection is complete

Thermador home connect induction liberty cooktops pairing step 10

STEP 10

You should now see ‘HC’ and ‘2’ displaying alternately, and ‘1’ is lit up in the cooking zone display

Thermador home connect induction liberty cooktops pairing step 11

STEP 11

When ‘0’ appears on the display, the registration has been completed

Thermador home connect induction liberty cooktops pairing step 12

STEP 12

Your cooktop is now paired to your Wi-Fi; press the 'Finished' button

Thermador home connect induction liberty cooktops final step

Enjoy!

Explore the Home Connect app and all of its exclusive features
