Home Connect Pairing - Ventilation

HDDB30WS
HDDB36WS
HMCB30WS
HMCB36WS
HMDW30WS
HMDW36WS
HMIB36WS
HMIB42WS
HMWB30WS
HMWB36WS
HMWB361WS
HMWB481WS
HPIN42WS
HPIN54WS
PH36GWS
PH42GWS
PH48GWS
PH54GWS
PH60GWS
VCIN36GWS
VCIN42GWS
VCIN48GWS
VCIN54GWS
VCIN60GWS
Ventilation Models
*Note – Before you begin your hood connection process, the hood and the lights must be turned off.
Thermador home connect ventilation pairing step 1 gif

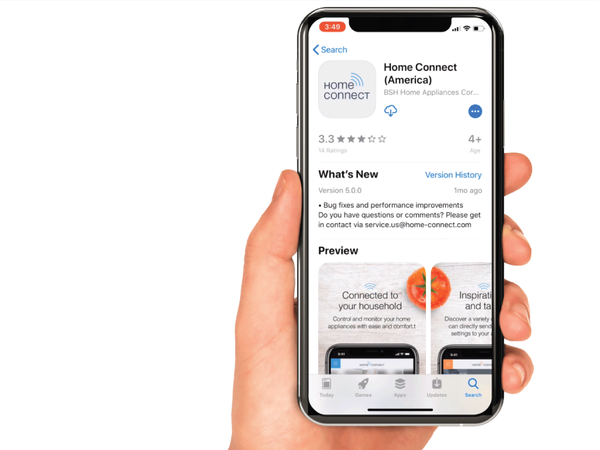

STEP 1

Download the Home Connect app

Thermador home connect ventilation pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started

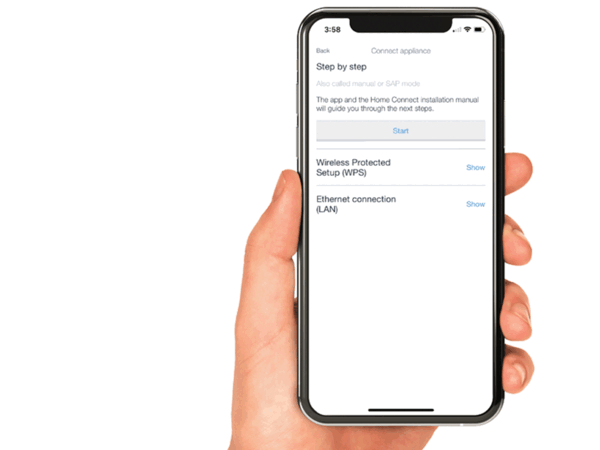

Thermador home connect dishwasher pairing step 3 gif

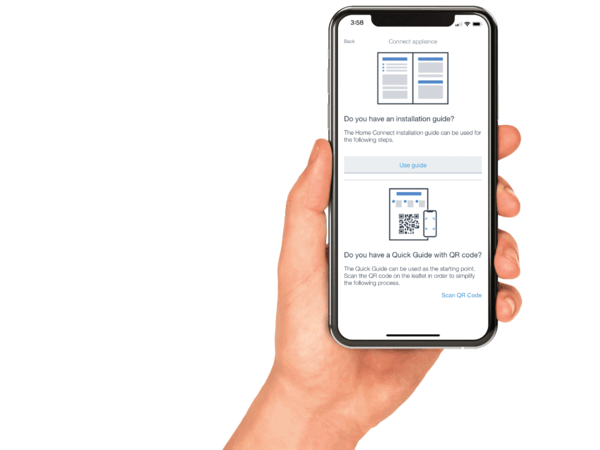

STEP 3

For fast track pairing guidance, press "Scan QR Code" at the bottom of the screen to continue

STEP 4

Scan the QR code on the left, or click this link if on your smartphone

Thermador home connect dishwasher pairing step 3 gif

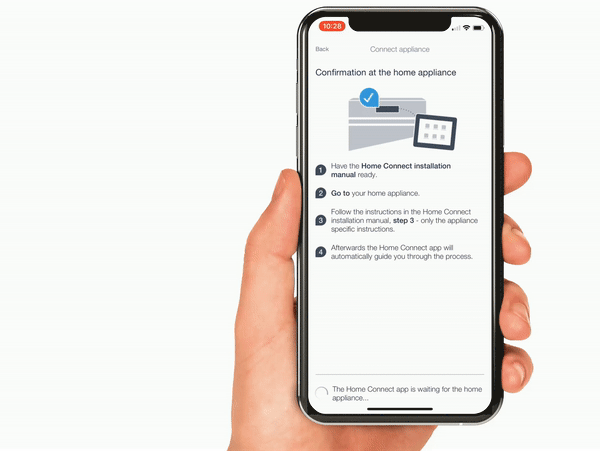

STEP 5

When prompted, press the 'Continue' button to begin, and go to your appliance

If you have scanned the QR code, the steps below will be loaded into the app to guide you

If you did not scan the QR code, you can follow the steps below to complete the connection process
Thermador home connect ventilation pairing step 4 gif

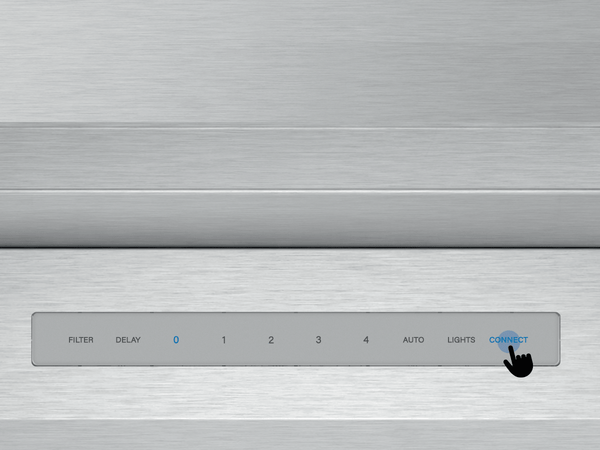

STEP 6

Press and hold the ‘Connect’ button until ‘0’ and ‘Connect’ flash on the hood display

Thermador home connect ventilation pairing step 5 image

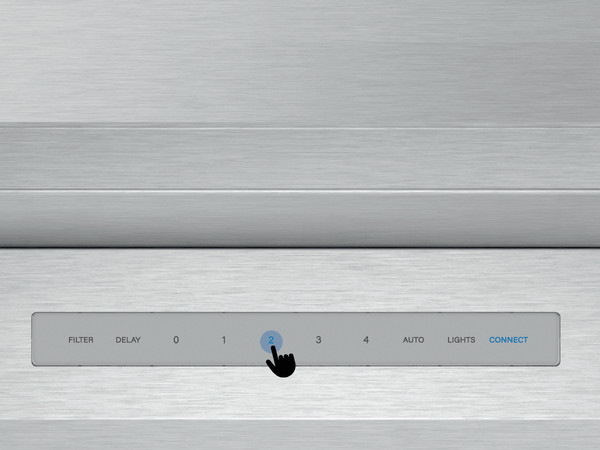

STEP 7

Press the ‘2’ button; you should now see ‘2’ and ‘Connect’ flash on the hood display

Thermador home connect ventilation pairing step 6 gifs

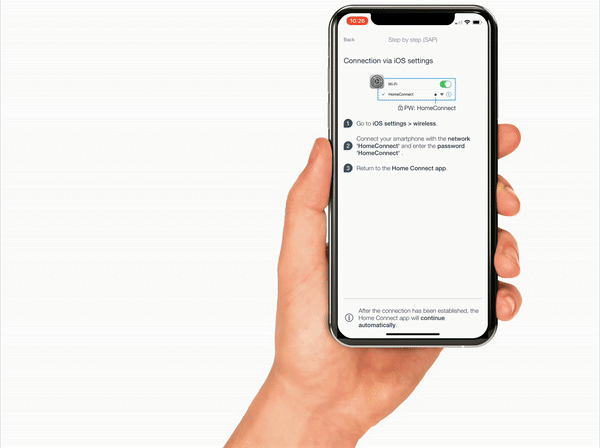

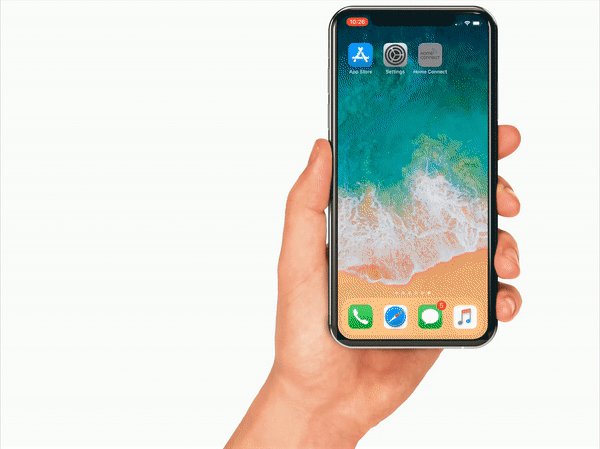

STEP 8

When a pop-up appears in the app asking you to join the “HomeConnect” Wi-Fi, press ‘Join’

Thermador home connect ventilation pairing step 7 image

STEP 9

Type in your home Wi-Fi password to complete the connection in the app

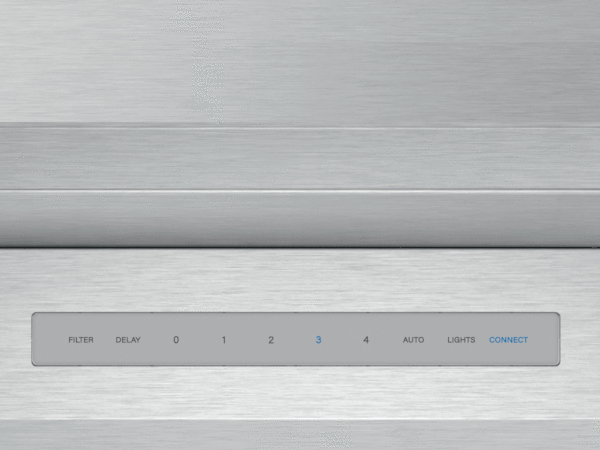

Thermador home connect ventilation pairing step 8 gif

STEP 10

When the ‘Connect’ and ‘3’ buttons flash on the hood display, your connection is complete

Thermador home connect ventilation pairing step 9 image

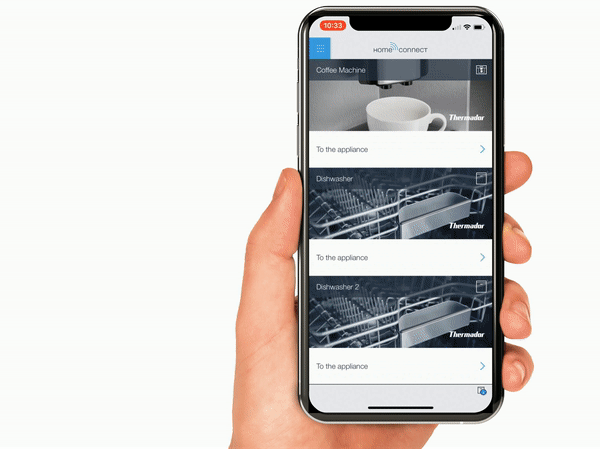

STEP 11

Your hood is now paired to your Wi-Fi; press the ‘Finished’ button.

Thermador home ventilation pairing oven finish

Enjoy!

Explore the Home Connect app and all of its exclusive features
