Home Connect Pairing - Refrigeration and Wine

Refrigeration Columns
T30IR901SP
Freezer Columns
T18IF901SP
Bottom Freezer Refrigeration
T36IT901NP
Wine Columns
T24IW901SP
Refrigeration and Wine Models
Thermador home connect Refrigeration and Wine pairing step 1 gif

STEP 1

Download the Home Connect app

Thermador home connect Refrigeration and Wine pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started

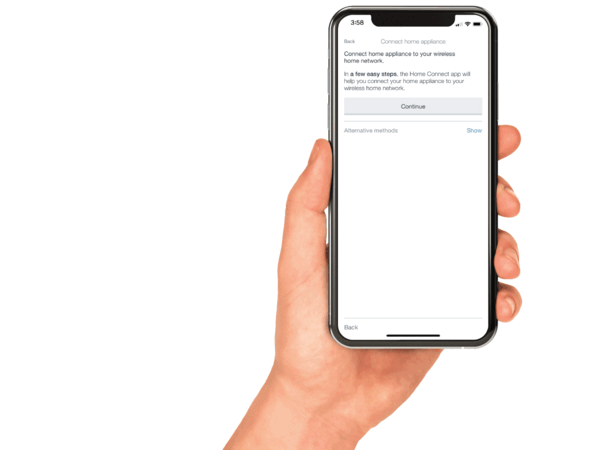

Thermador home connect Refrigeration and Wine pairing step 3 gif

STEP 3

When prompted, press the 'Continue' button to begin, and go to your appliance

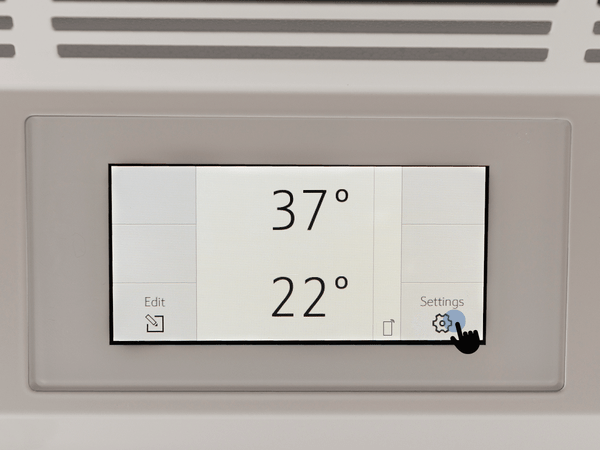

Thermador home connect Refrigeration and Wine pairing step 4 gif

STEP 4

Press the button

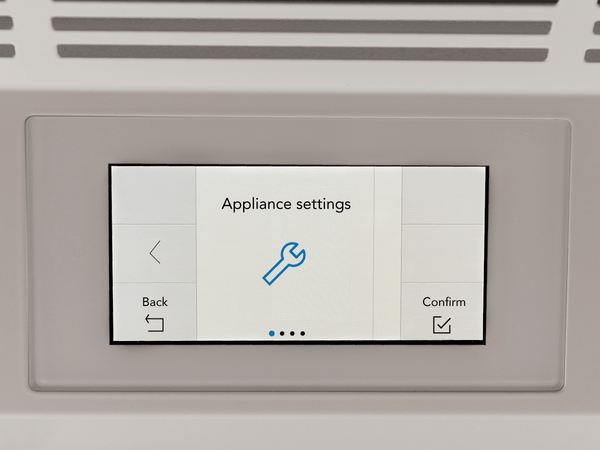

Thermador home connect Refrigeration and Wine pairing step 5 image

STEP 5

Use the '<' button to scroll through the menu until you see 'Appliance Settings'

Thermador home connect oven Refrigeration and Wine pairing step 6 gifs

STEP 6

Press the button

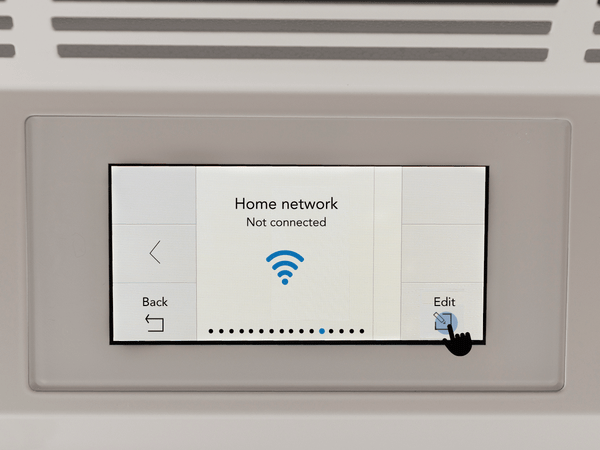

Thermador home connect  Refrigeration and Wine pairing step 7 image

STEP 7

Use the '<' button to scroll through the menu until you see 'Home Network', and press the button

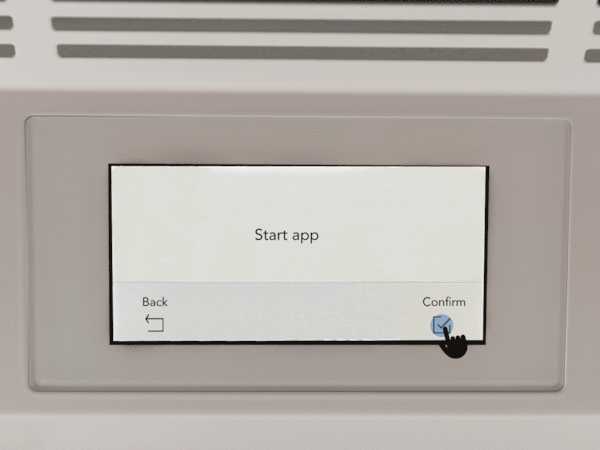

Thermador home connect  Refrigeration and Wine pairing step 8 gif

STEP 8

Press the button 3 more times to connect to the app

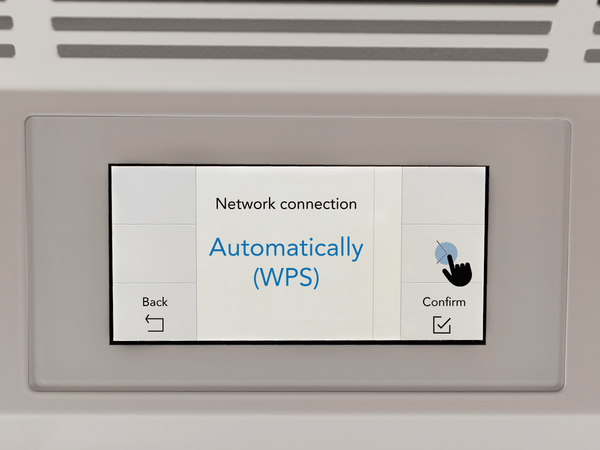

Thermador home connect  Refrigeration and Wine pairing step 9 image

STEP 9

Press the '>' button for 'Manual Connection'

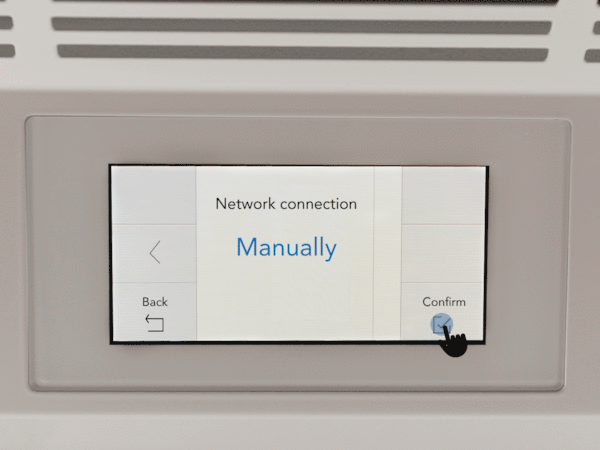

Thermador home connect Refrigeration and Wine pairing step 10 gif

STEP 10

Press the button once to confirm the connection, and again to set up the appliance network

Thermador home connect Refrigeration and Wine pairing step 11 gif

STEP 11

When a pop-up appears in the app asking you to join the "HomeConnect" Wi-Fi, press 'Join'

Thermador homeconnect Refrigeration and Wine pairing  step 12

STEP 12

Type in your home Wi-Fi password to complete the connection in the app

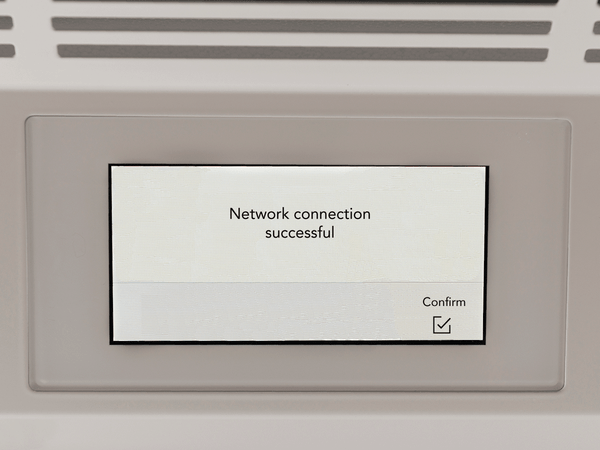

Thermador home connect pairing Refrigeration and Wine step 13

STEP 13

When 'Network connection successful' appears on the display, your connection is complete

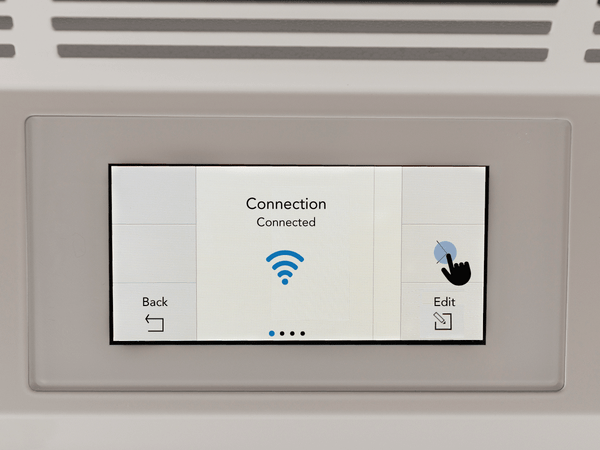

Thermador homeconnect Refrigeration and Wine pairing step 14

STEP 14

Press the '>' button and 'Connection Connected' will appear on the display

Thermador homeconnect Refrigeration and Wine pairing step 15

STEP 15

Press the button

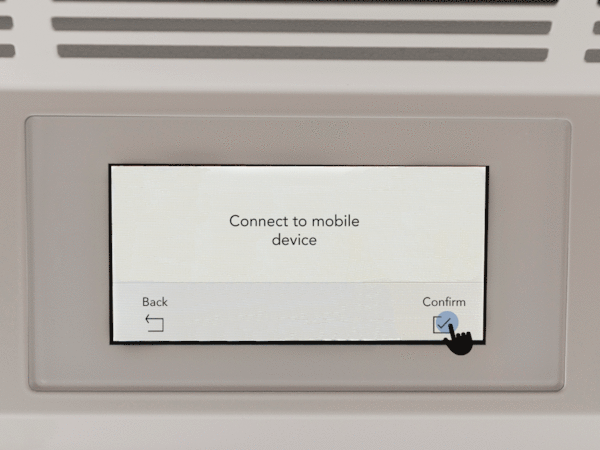

Thermador homeconnect pairing for 6588627_Refrigeration_wine_freezer_pairing_step_16.gif step 16

STEP 16

Press the button twice

Thermador homeconnect  Refrigeration and Wine pairing step 17

STEP 17

Your appliance is now paired to your Wi-Fi; press the 'Finished' button

Thermador home connect pairing oven finish

Enjoy!

Explore the Home Connect app and all of its exclusive features
