Home Connect Pairing - Dishwasher

Emerald
DWHD650WFM
DWHD650WFP
DWHD650WPR
Topaz
DWHD660WFM
DWHD660WFP
DWHD660WPR
Glass Care Center
DWHD771WFM
DWHD771WFP
DWHD771WPR
Emerald | Topaz | Glass Care Center Models

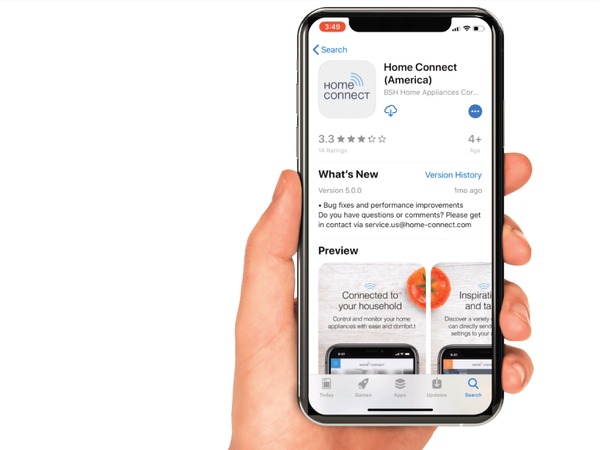

Thermador home connect dishwasher pairing step 1 gif

STEP 1

Download the Home Connect app

Thermador home connect dishwasher pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started

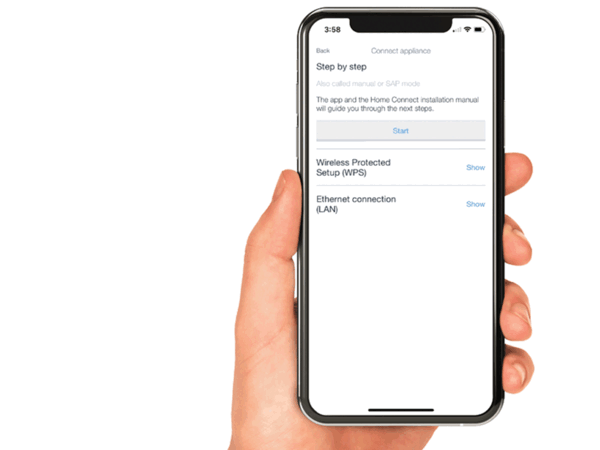

Thermador home connect dishwasher pairing step 3 gif

STEP 3

Continue in the app, and when prompted press the 'Start' button to begin

Thermador home connect dishwasher pairing step 4 gif

STEP 4

Press and hold the 'Rinse/Setup' button on the dishwasher for 3 seconds

Thermador home connect dishwasher pairing step 5 image

STEP 5

Then press the 'Rinse/Setup' button multiple times until 'Cn:00' appears on the display

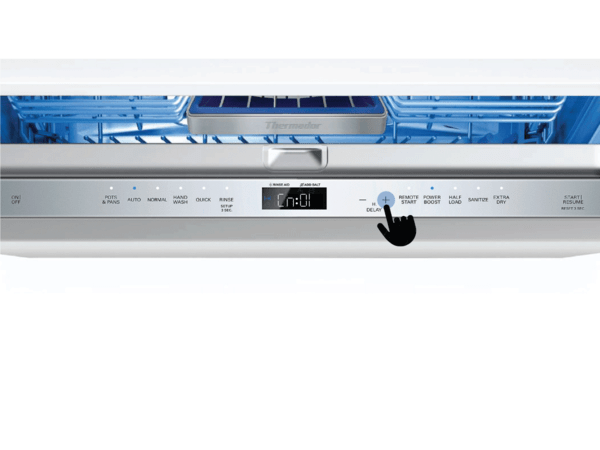

Thermador home connect dishwasher pairing step 6 gifs

STEP 6

Press the '+' button once, then 'Cn:01' will appear on the dishwasher

Thermador home connect dishwasher pairing step 7 image

STEP 7

Press the 'Rinse/Setup' button multiple times until 'SA:' appears on the display

Thermador home connect dishwasher pairing step 8 gif

STEP 8

Press the ‘+’ button once, then ‘PA:’ will appear on the dishwasher

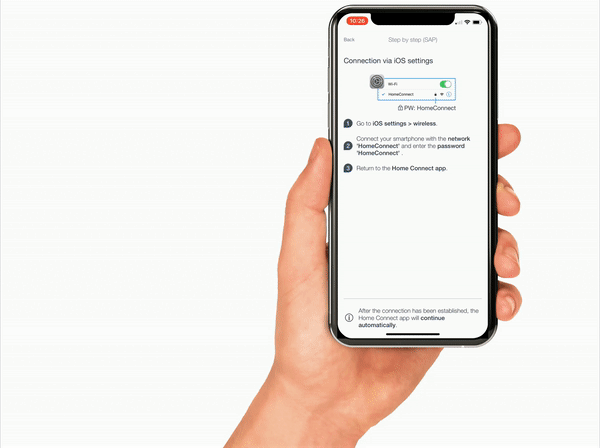

Thermador home connect dishwasher pairing step 9 image

STEP 9

  • Go to your phone Wi-Fi settings
  • Connect to the 'HomeConnect' network and enter the password "HomeConnect"

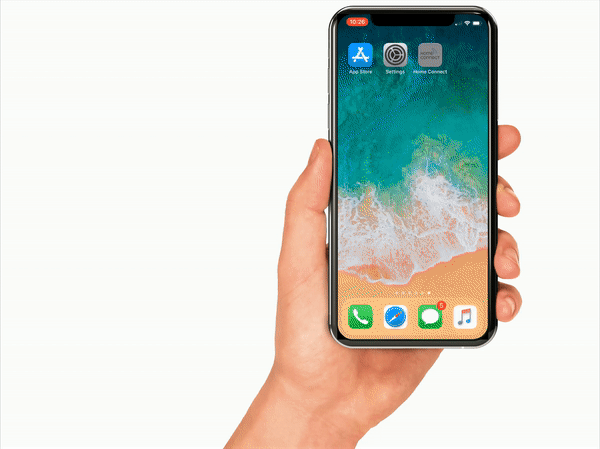

Thermador home connect dishwasher pairing step 10 gif

STEP 10

  • Return to the Home Connect app
  • Type in your home Wi-Fi password to complete the connection

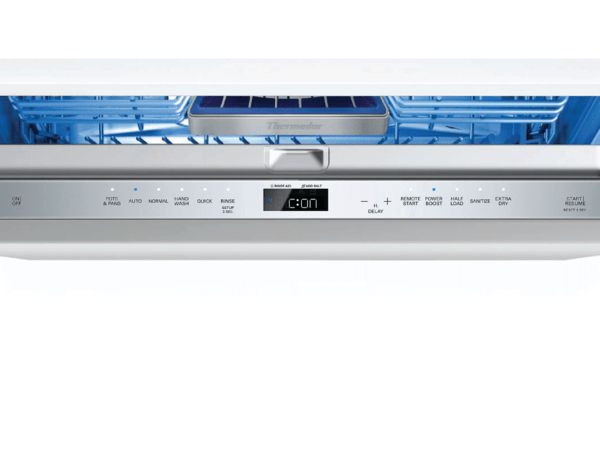

Thermador home connect dishwasher pairing step 11 gif

STEP 11

When 'c:on' appears on the dishwasher display, your connection was successful

Thermador dishwasher pairing sapphire star sapphire step 12

STEP 12

Your dishwasher is now paired to your Wi-Fi; press the 'Finished' button

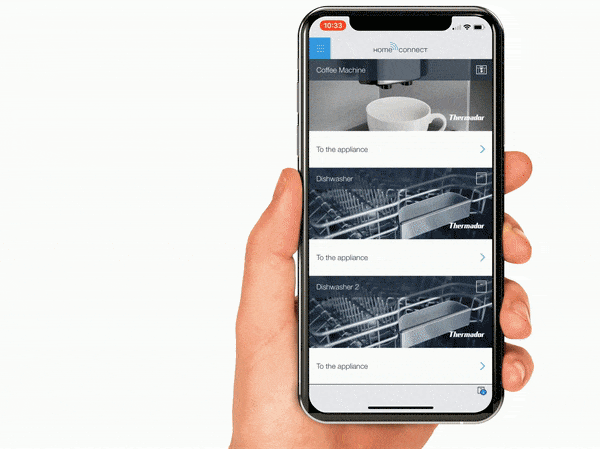

Thermador dishwasher pairing sapphire star sapphire finish

Enjoy!

Explore the Home Connect app and all of its exclusive features
