Home Connect Pairing - Dishwasher

Sapphire
DWHD770WFM
DWHD770WFP
DWHD770WPR
Star Sapphire
DWHD870WFM
DWHD870WFP
DWHD870WPR
Sapphire / Star Sapphire Models
Thermador home connect dishwasher pairing step 1 gif

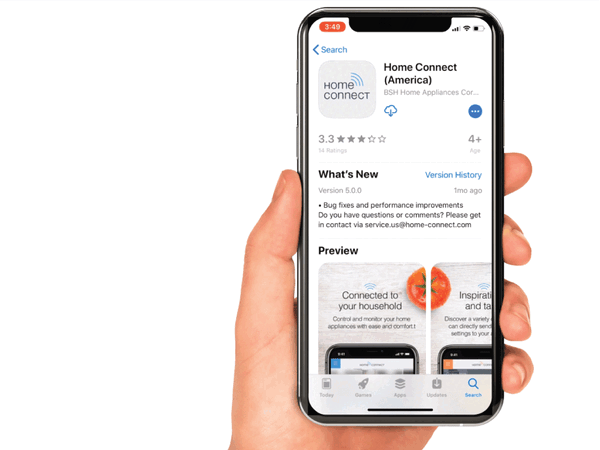

STEP 1

  • Download the Home Connect app
Thermador home connect dishwasher pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started

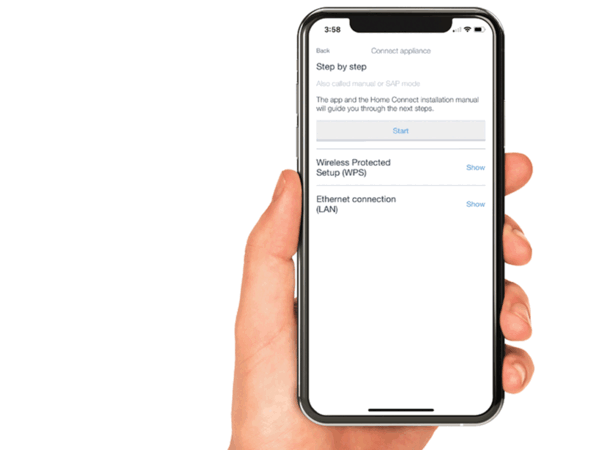

Thermador home connect dishwasher pairing step 3 gif

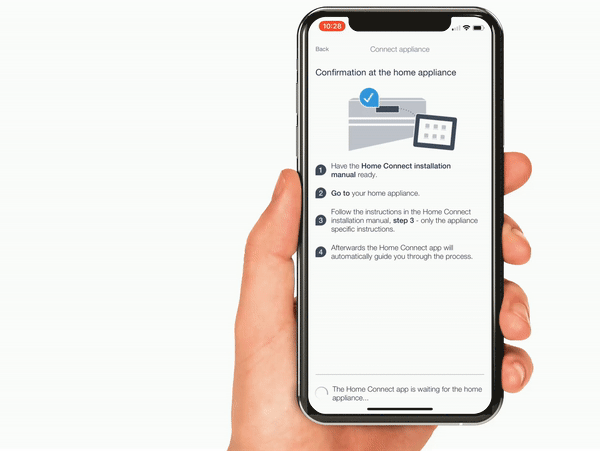

STEP 3

Continue in the app, and when prompted press the 'Start' button to begin

Thermador home connect dishwasher pairing step 4 gif

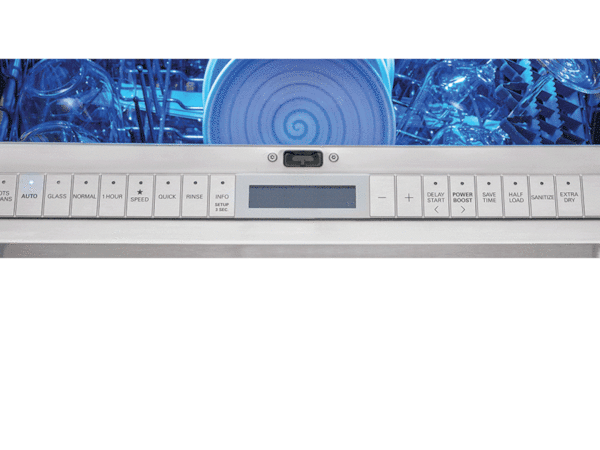

STEP 4

Press and hold the 'Info' button on the dishwasher for 3 seconds

Thermador home connect dishwasher pairing step 5 image

STEP 5

Then press the '<' or '>' button until 'Wi-Fi- Off' appears on the display

Thermador home connect dishwasher pairing step 6 gifs

STEP 6

Press the '+' button once, then 'Wi-Fi On' will appear on the dishwasher

Thermador home connect dishwasher pairing step 7 image

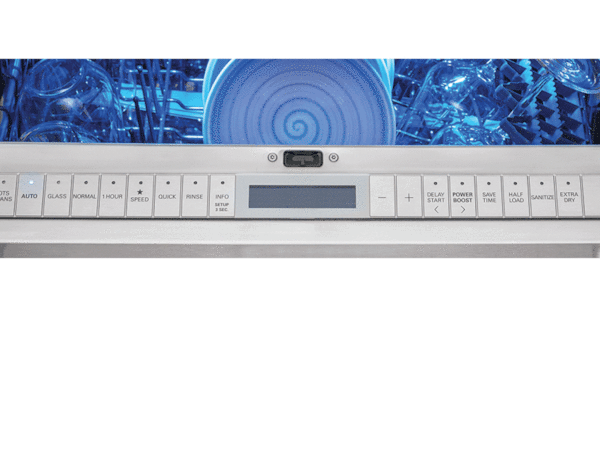

STEP 7

Press the '<' or '>' button until 'Network Connection' appears on the display

Thermador home connect dishwasher pairing step 8 gif

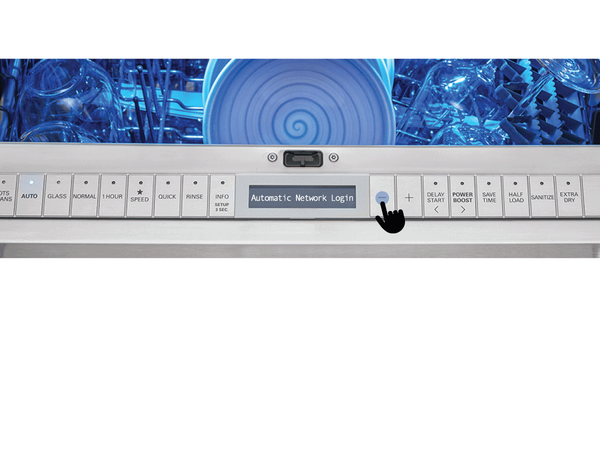

STEP 8

Press the '-' button once, then 'Automatic Network Login' will appear on the dishwasher

Thermador home connect dishwasher pairing step 9 image

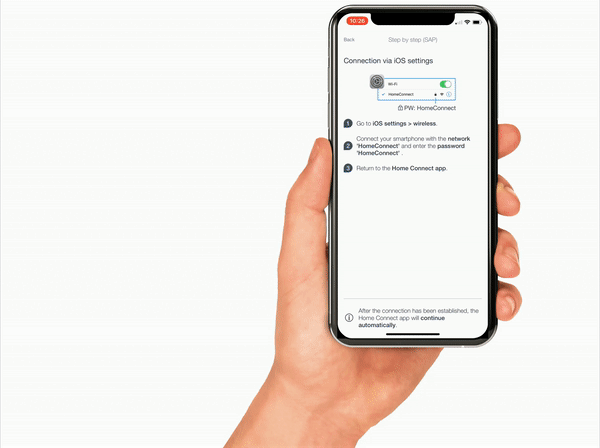

STEP 9

  • Go to your phone Wi-Fi settings
  • Connect to the 'HomeConnect' network and enter the password "HomeConnect"
Thermador home connect dishwasher pairing step 10 gif

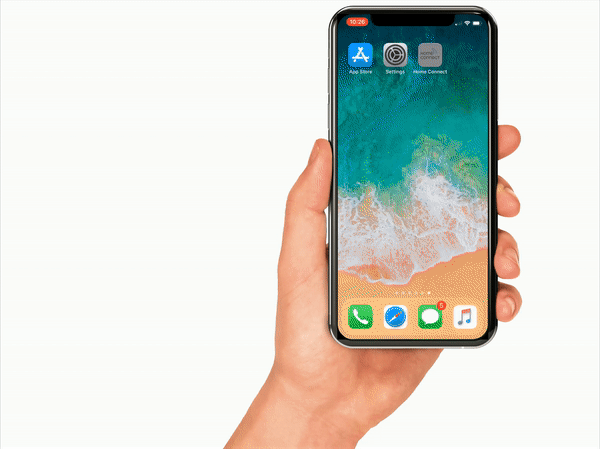

STEP 10

  • Return to the Home Connect app
  • Type in your home Wi-Fi password to complete the connection
Thermador home connect dishwasher pairing step 11 gif

STEP 11

When ‘Network Login Successful’ appears on the dishwasher display, your connection was successful

Bosch dishwasher pairing sapphire star sapphire step 12

STEP 12

Your dishwasher is now paired to your Wi-Fi; press the 'Finished' button

Bosch dishwasher pairing sapphire star sapphire finish

Enjoy!

Explore the Home Connect app and all of its exclusive features
