Home Connect Pairing - Coffee Machines

TCM24PS
TCM24TS
Coffee Machine Models
Thermador home connect dishwasher pairing step 1 gif

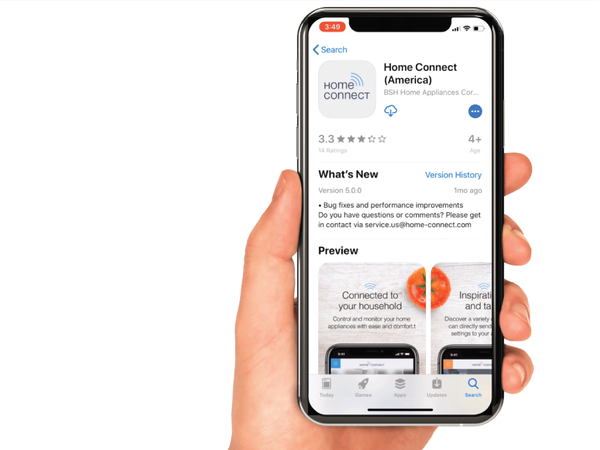

STEP 1

  • Download the Home Connect app
Thermador home connect dishwasher pairing step 2

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started
Thermador home connect dishwasher pairing step 3 gif

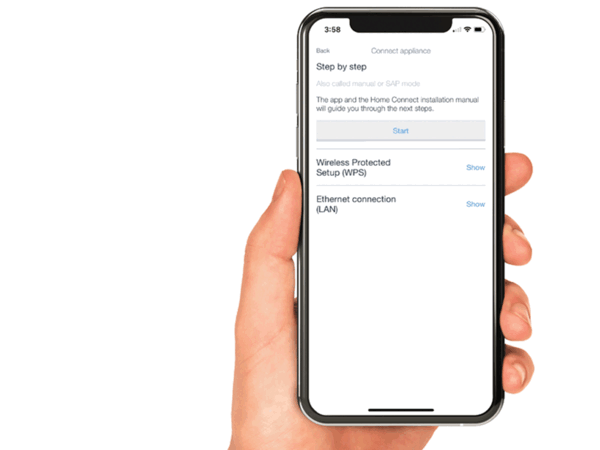

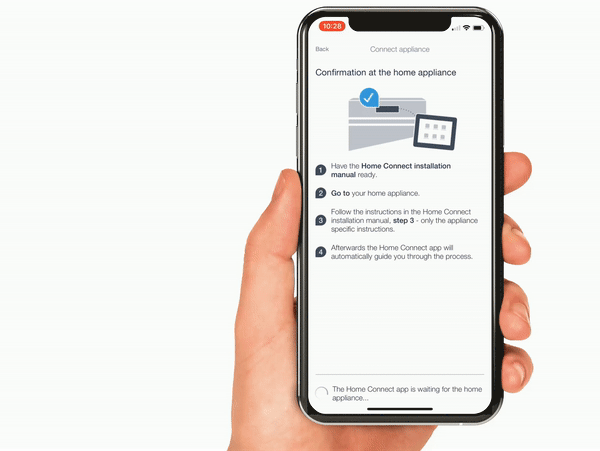

STEP 3

When prompted, press the 'Continue' button to begin, and go to your appliance

Thermador home connect dishwasher pairing step 4 gif

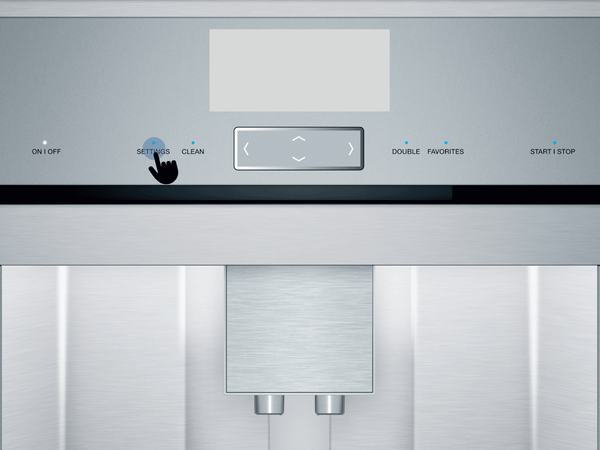

STEP 4

Press the ‘Settings’ button on the coffee machine display

Thermador home connect dishwasher pairing step 5 image

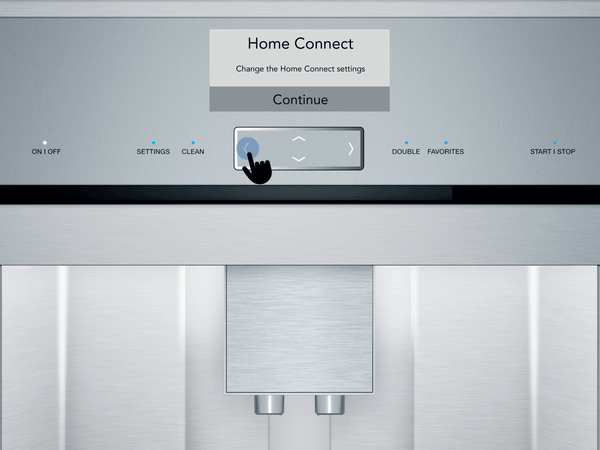

STEP 5

Use the ‘<’ or ‘>’ arrows to scroll through the menu until you see Home Connect

Thermador home connect dishwasher pairing step 6 gifs

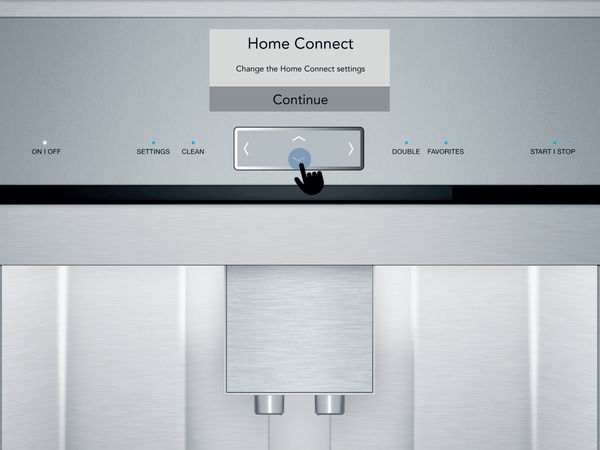

STEP 6

Press the button marked to “Continue”

Thermador home connect dishwasher pairing step 7 image

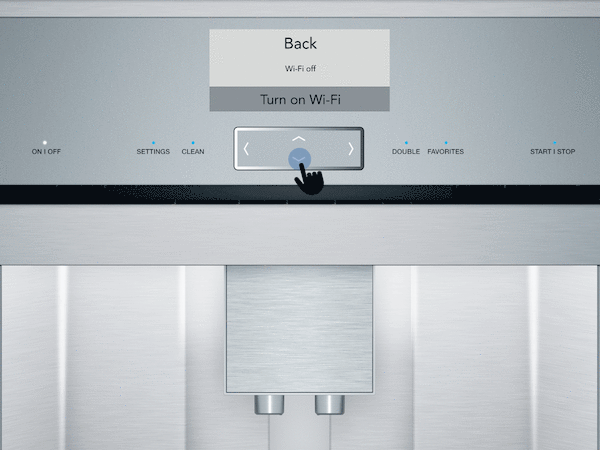

STEP 7

Next press the button marked to “Turn on Wi-Fi”

Thermador home connect dishwasher pairing step 8 gif

STEP 8

Press the ‘>’ button and you will see ‘Network not connected’ on the coffee display

Thermador home connect dishwasher pairing step 9 image

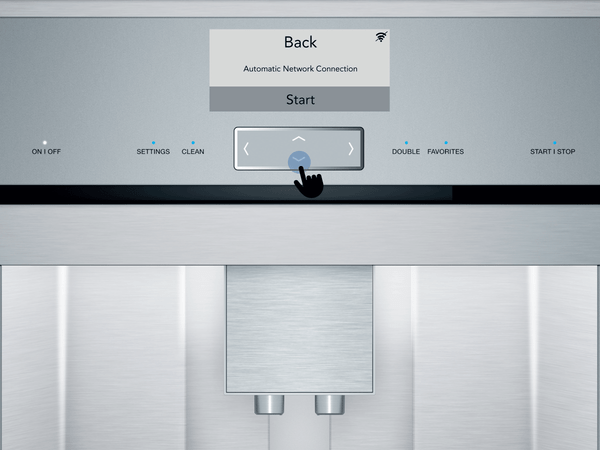

STEP 9

Then press the button to see “Automatic Network Connection”

Thermador home connect dishwasher pairing step 10 gif

STEP 10

Press the '>' button to see “Connect Manually"

Thermador home connect dishwasher pairing step 11 gif

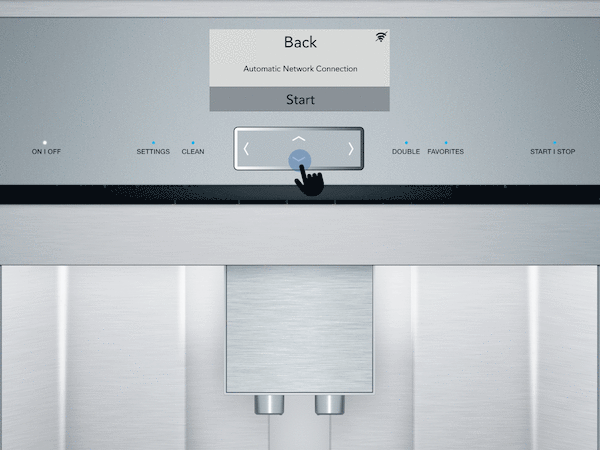

STEP 11

Then press the button to start the connection

Bosch dishwasher pairing sapphire star sapphire step 12

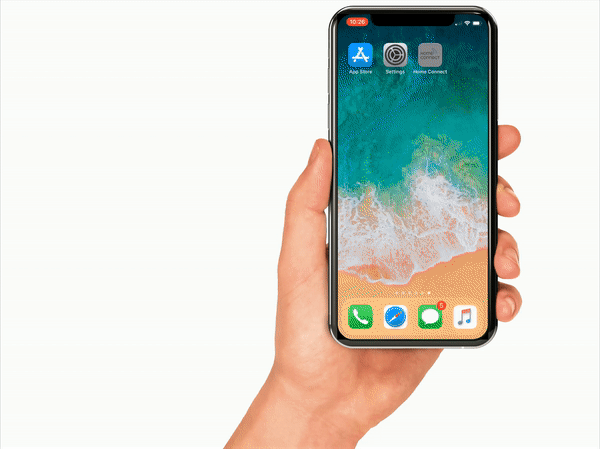

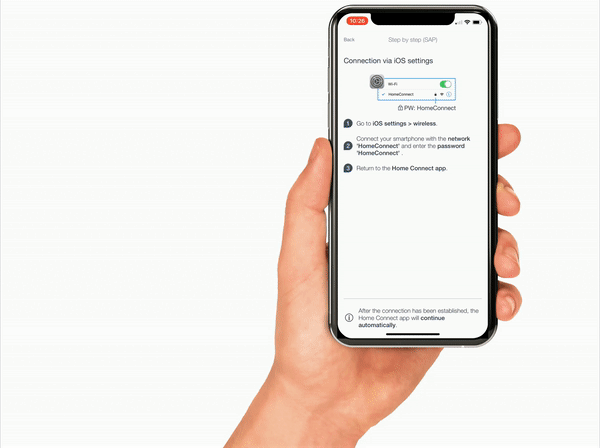

STEP 12

When a pop-up appears in the app asking you to join the "HomeConnect" Wi-Fi, press Join

Thermador home connect dishwasher pairing step 13

STEP 13

Type in your home Wi-Fi password to complete the connection in the app

Thermador home connect dishwasher pairing step 14 gif

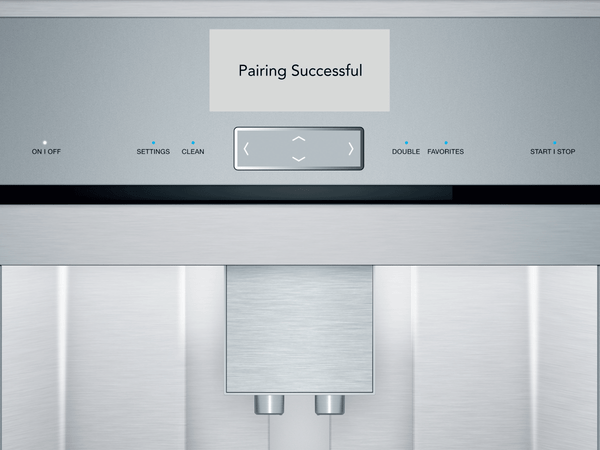

STEP 14

When 'Pairing Successful' appears on the coffee machine display, your connection is complete

Thermador home connect dishwasher pairing step 15 gif

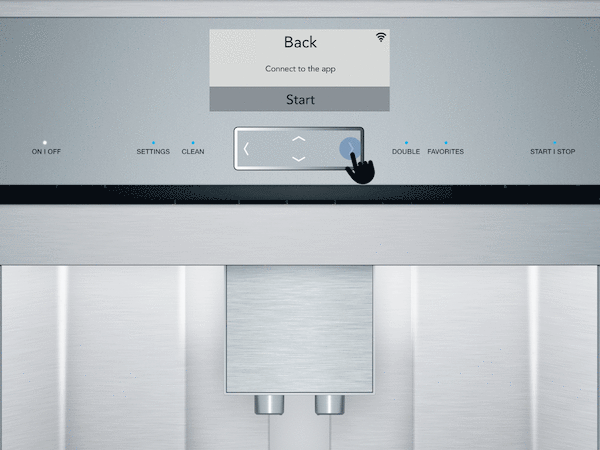

STEP 15

Press the '>' button to "Connect to the app"

Thermador home connect dishwasher pairing step 16 gif

STEP 16

Press the button to "Connect"

Thermador home connect dishwasher pairing step 17 gif

STEP 17

Your coffee machine is now paired to your Wi-Fi; press the 'Finished' button

Thermador coffee machine final step - enjoy!

Enjoy!

Explore the Home Connect app and all of its exclusive features
