Home Connect Pairing - Ranges

PRD486WLHU
PRD486WDHU
PRD484WCHU
PRG486WLH
PRG486WDH
PRD364WLHU
PRD364WDHU
PRD366WHU
PRD48WLSGU
PRD48WDSGU
PRD48WISGU
PRD486WLGU
PRD486WDGU
PRD484WCGU
PRD486WIGU
PRG486WLG
PRG486WDG
PRD364WLGU
PRD364WDGU
PRD366WGU
PRD364WIGU
PRG364WLG
PRG364WDG
PRG366WG
PRG364WLH
PRG364WDH
PRG366WH
PRD606WCSG
PRD606WESG
PRD606WCG
PRD606WEG
PRD48WCSGU
Range Models
*Note - Only Main Oven is enabled with Home Connect
Thermador home connect ranges pairing step 1 gif

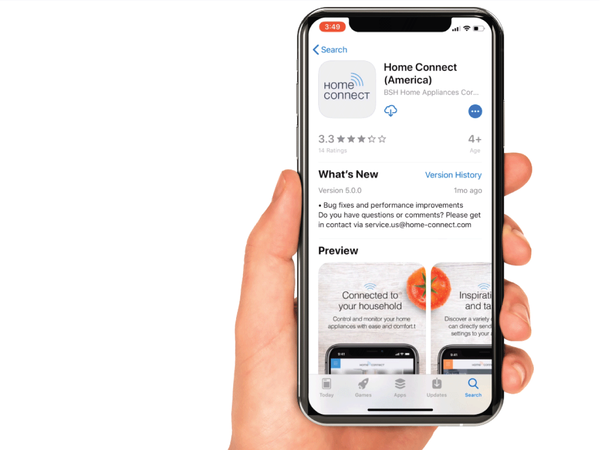

STEP 1

Download the Home Connect app

Thermador home connect ranges pairing step 2

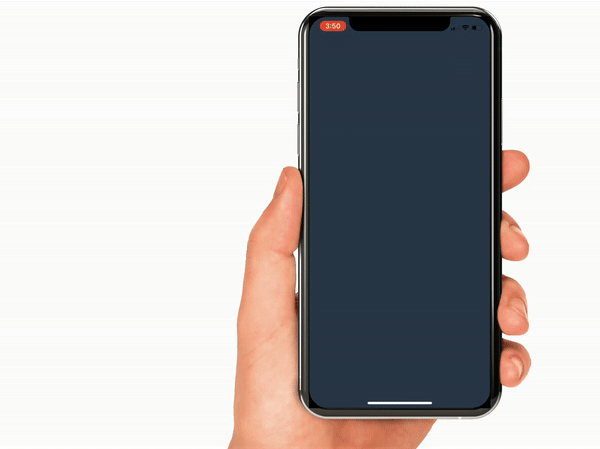

STEP 2

  • Create a new account
  • Login to the app
  • Click the 'Add appliance' button to get started
Thermador home connect ranges pairing step 3 gif

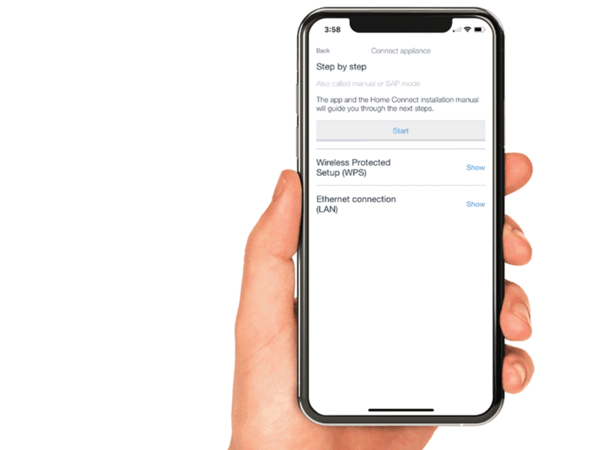

STEP 3

When prompted, press the 'Continue' button to begin, and go to your appliance

Thermador home connect ranges pairing step 4 gif

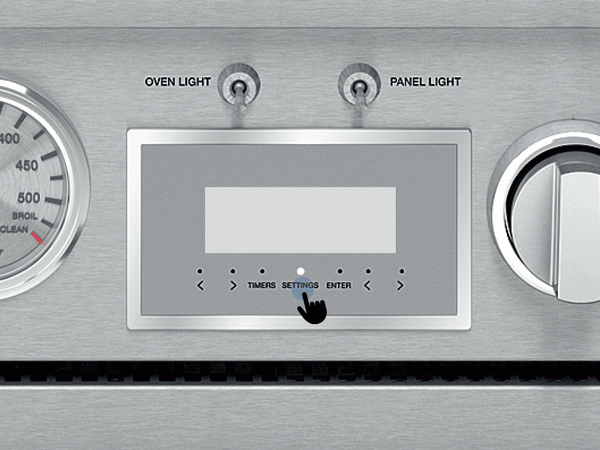

STEP 4

Press the 'Settings' button on the oven display

Thermador home connect ranges pairing step 5 image

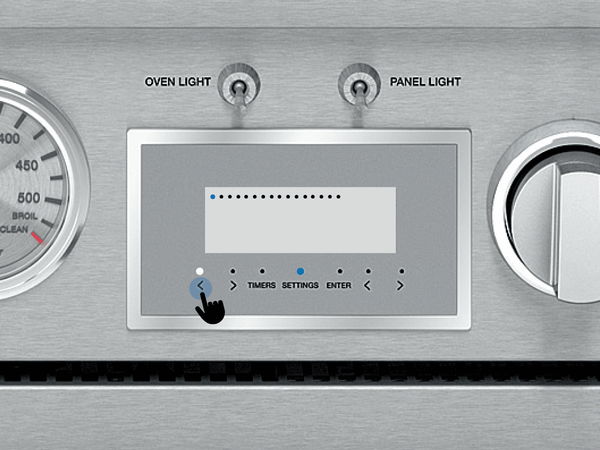

STEP 5

Use the far left button ‘<’ to scroll through the menu until you see “Home Connect”

Thermador home connect ranges pairing step 6 gifs

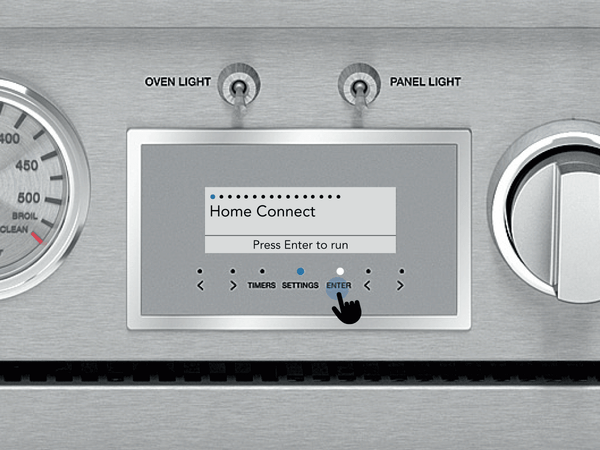

STEP 6

Press the ‘Enter’ button to run

Thermador home connect ranges pairing step 7 image

STEP 7

Then press the ‘Enter’ button again to continue

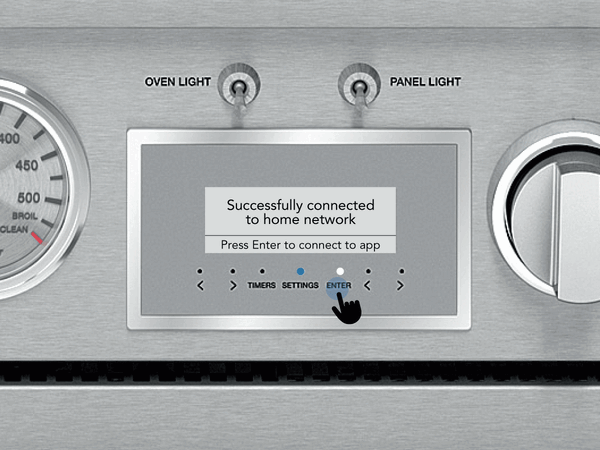

Thermador home connect ranges pairing step 8 gif

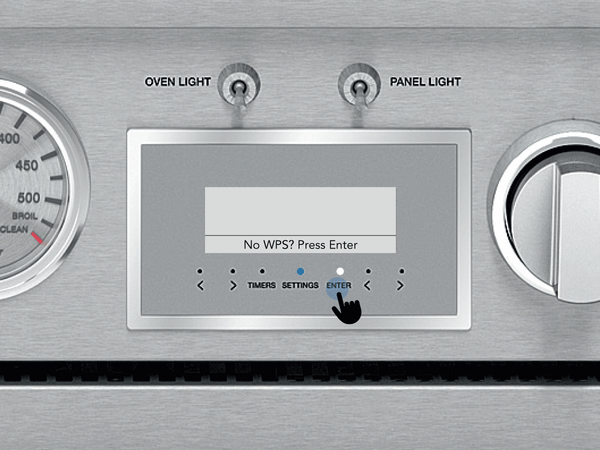

STEP 8

Press the ‘Enter’ button once more to start the manual connection

Thermador home connect ranges pairing step 9 image

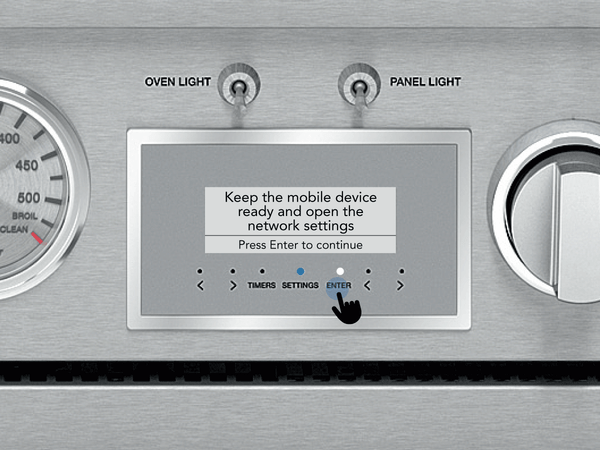

STEP 9

Then press the ‘Enter’ button one last time to continue

Thermador home connect ranges pairing step 10 gif

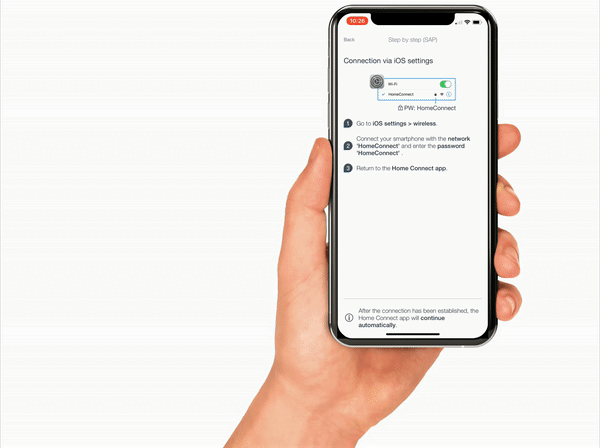

STEP 10

When a pop-up appears in the app asking you to join the "HomeConnect" Wi-Fi, press 'Join'

Thermador home connect oven pairing step 11 gif

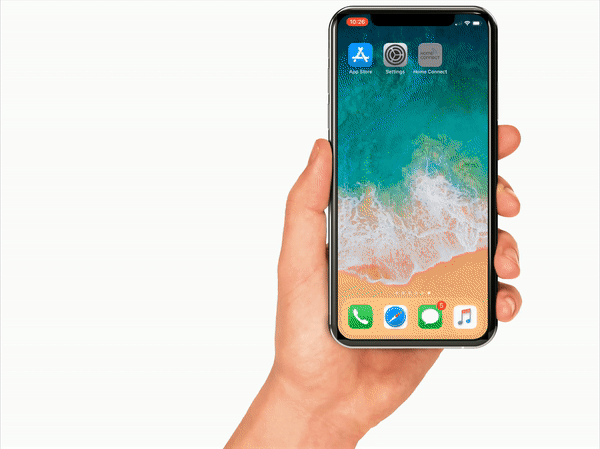

STEP 11

Type in your home Wi-Fi password to complete the connection in the app

Thermador home connect ranges ranges paring step 12 gif

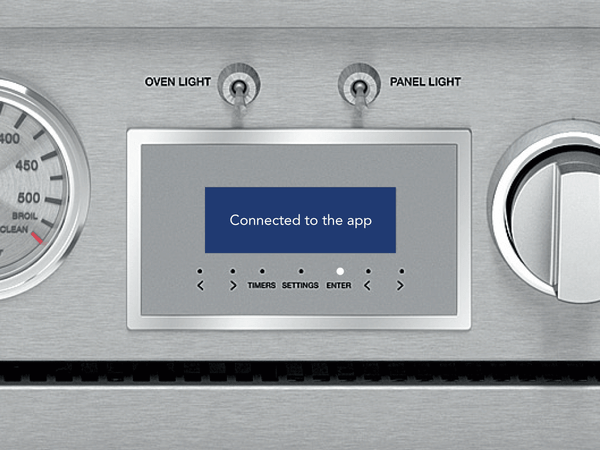

STEP 12

When 'Connected to the app' appears on the range display, your connection is complete

Thermador home connect pairing ranges step 13

STEP 13

Your range is now paired to your Wi-Fi; press the ‘Finished’ button.

Thermador HomeConnect Range pairing final step - Enjoy!

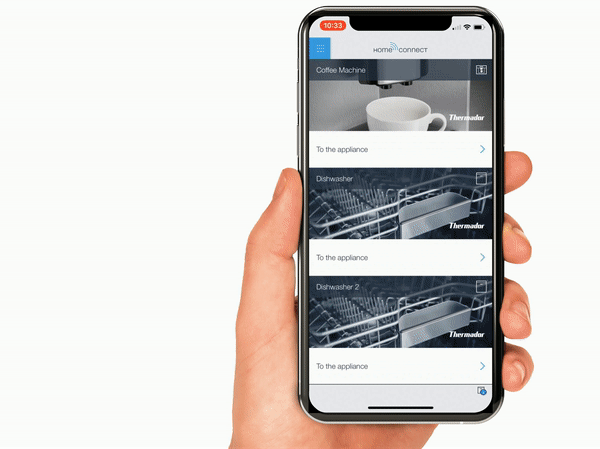

Enjoy!

Explore the Home Connect app and all of its exclusive features
